+Hello Everyone,
+
+Learned some hard problem solving technique using Binary Index Tree(BIT) , wanted to share . Feel free to point any mistake and add more problems to this thread.
+
+**Pre-requiste**
+You can learn about BIT from wikipedia or these resource
+https://www.youtube.com/watch?v=v_wj_mOAlig
+https://www.youtube.com/watch?v=uSFzHCZ4E-8
+
+You should also be aware of how to do combination of range update and point queries(check wikipedia) or
+https://leetcode.com/discuss/general-discussion/1093346/introduction-to-fenwick-treebinary-indexed-treebit
+
+**Warm-up Problems:**
+After reading about basic of BIT, you must solve these 2 problems to get hands dirty on BIT.
+Solving these gives confidence in BIT and they are easy but important problems.
+Make sure to use long long.
+
+https://www.spoj.com/problems/FENTREE/
+https://www.spoj.com/problems/UPDATEIT/
+
+**Hard Problems**:
+Real fun starts here.

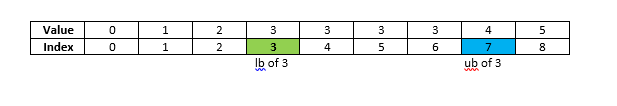

+- Fisrt familirize with what is lower_bound & upper_bound.
+1.lower_bound first iterator of value <=
+2.upper_bound return value >
+3.in case in lower_bound you need last index <= (GFG problem requires that) just do upper_bound -1.  in this diagram you get index 6 then.
+![image](https://assets.leetcode.com/users/images/d334ec73-4330-4cd1-bccc-26d589cb7da0_1636528111.2083225.png)
+
+
+
+- Whether to iterate from begining or end of vector.
+Mostly you iterate from begining unless problem ( like LC 315) asked something specific.
+
+**Template:**
+1. Copy the input vector into another vector and sort it. Why we need another sorted vector is an important  concept to understand here since this is used in all problem.
+   Basically in Step 4 we iterate  the input array  (not the sorted array) and we find its position in sorted array and then see how many element before or after (depend on problem)
+   occured and then sum it up. Will explain in detail in the problem.
+2. Setup BIT array of 1+n , where n is array size.
+3. Iterate from begin/ end.
+4. See what the problme is asking for and acording use lower/upper bound We want everything less than current
+5. Update the frequency of this current element in BIT array.
+
+Lets see this template working in this problem.
+[LC 315: Smaller Number than Self](https://leetcode.com/problems/count-of-smaller-numbers-after-self/)
+Step 1 & 2 is standard.
+Step 3 :  This question asked every element smaller on its right side, so start from end.
+Step 4: Problem is asking for less than current element so lower_bound is needed.
+        Since BIT works on 1 index, increment index by 1.
+        Now we want everything less than current value so sum(index -1).
+Step 5: Increment index by 1.
+
+Step 4 & 5 in detail
+A = [5,2,6,1]
+Sorted_A = [1, 2, 5, 6]
+BIT = [0, 0, 0, 0, 0]
+
+loop from end
+i = 3
+  nums[i] = 1
+  its position in Sorted_A is 0 (lower_bound of 1 is 1 itself)
+  BIT works on 1 index so index is 1.
+  now we want everything less than 1 so sum(0) which gives 0 and we know nothing is less than 1 on right side so res[3] = 0

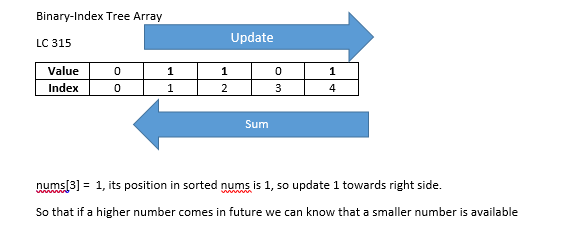

+  update idx=1 in BIT array , we are trying to communicate to all higher index that a smaller number (1) is available.
+  This is a key part in understand which direction to update and which direction to sum, if you see 493 the process(sum and update) is exact reverse.
+  so BIT = [0, 1, 1, 0, 1]  (1st , 2nd and 4th index is incremented by 1)
+![image](https://assets.leetcode.com/users/images/128f336e-d9c8-4174-98bb-901db073fabd_1636528162.5162542.png)
+
+i=2
+  nums[i] = 6
+  position in sorted_A is 3
+  +1 for BIT index = 4
+  we want all less than this index so sum(3)
+  now since 1 occured in previous iteration and it has updated BIT array so sum(3) gives 1, res[2] = 1
+  after update(4) we get BIT = [0, 1, 1, 0, 2]
+```
+class Solution {
+    vector<int> BIT;
+    int sum (int idx){
+        int ret =0;
+        for(; idx > 0; idx -= (idx & -idx))
+            ret += BIT[idx];
+        return ret;
+    }
+    void update(int idx){
+        for(; idx < BIT.size(); idx += (idx & -idx))
+            BIT[idx]++;
+    }
+public:
+    vector<int> countSmaller(vector<int>& nums) {
+        int n = nums.size();
+        vector<int> sorted(nums);
+        sort(sorted.begin(), sorted.end()); // Step 1
+        BIT.resize(1+n); // Step 2
+		vector<int> ans(nums.size());
+        for(int i =n-1; i>=0; --i){
+            int idx = lower_bound(sorted.begin(), sorted.end(), nums[i]) - sorted.begin();
+            ++idx;// since BIT starts with 1
+            ans[i] = sum(idx-1);
+            update(idx);
+        }
+        return ans;
+    }
+```
+
+[LC 493: Reverse Pair](https://leetcode.com/problems/reverse-pairs/)
+Exactly same as above but one key difference
+Here if we get smaller number , we need to get the count of all the bigger number (2 * x - 1 ) appeared in past iteration .
+Now since the smaller number index would be smaller, all the bigger number has to tell to the left of it . that means update should happen toward left.
+```
+class Solution {
+    int n;
+    vector<int> BIT;
+    int sum(int i){
+        int ret = 0;
+        for(; i < BIT.size(); i += (i & -i))
+            ret += BIT[i];
+        return ret;
+    }
+    void update(int i){
+        for(; i >0; i -= (i & -i))
+            BIT[i]++;
+    }
+public:
+    int reversePairs(vector<int>& nums) {
+        n = nums.size();
+        BIT.resize(1+n);
+        vector<int> sorted_nums(nums);
+        sort(sorted_nums.begin(), sorted_nums.end());
+        int ans = 0;
+        for(int i =0; i < n; ++i){
+            int idx = lower_bound(sorted_nums.begin(), sorted_nums.end() , (long)2*nums[i] + 1) - sorted_nums.begin();
+
+            ++idx;
+            ans += sum(idx);
+            idx = lower_bound(sorted_nums.begin(), sorted_nums.end(), nums[i]) - sorted_nums.begin();
+            ++idx;
+            update(idx);
+        }
+        return ans;
+    }
+};
+```
+
+Try solving this problem too, same as above, except lower/upper bound difference.
+https://www.spoj.com/problems/INVCNT/
+
+**BIT using Prefix Sum**
+
+Key difference is instead of number , we are asked sub-array whose sum lies in certain range.
+Basically the problem involved sub-array instead of array element.
+
+When problem asked for subarray sums, one standard approach come to mind is prefix sum.
+1. Generate prefix sum
+2. Generate sorted prefix_sum
+These two will replace the nums & sorted_nums in template.
+Also assign a unique rank or number to each of the psum, why are we doing it, because we are using this unique number to update the BIT.
+remember that psum can be -ve and BIT works on +ve indices
+you have 2 option ,
+1. either make all the psum +ve
+2. or assign a unique rank to each psum and then use this unique rank to update BIT.
+For more details I added another post https://leetcode.com/problems/count-of-smaller-numbers-after-self/discuss/1547068/binary-index-tree-in-2-different-ways
+
+[327. Count of Range Sum](https://leetcode.com/problems/count-of-range-sum/)
+
+ [-2,5,-1], lower = -2, upper = 2
+ Suppose psum[i] is 7 , we are looking if any previous psum  lies in range [5, 9]
+ which means [psum[i]-upper , psum[i]-lower]
+ so look for this psum in sorted_psum and then do the sum(higher)-sum(lower)
+ finally update(rank(psum[i])) ; remember we are dealing BIT index on rank of psum not the psum itself as psum cna be -ve.
+```
+class Solution {
+    vector<int> BIT;
+    int n;
+    void update(int i){
+        for(; i < BIT.size(); i += (i & -i))
+            BIT[i]++;
+    }
+    int sum(int i){
+        int ret  =0;
+        for(; i > 0; i -= (i& -i))
+            ret += BIT[i];
+        return ret;
+    }
+public:
+    int countRangeSum(vector<int>& nums, int lower, int upper) {
+        n = nums.size();
+        vector<long> psum(1+n, 0);
+        for(int i =0; i <n; ++i)
+            psum[i+1] = psum[i] + nums[i];
+        vector<long> sorted_psum(psum);
+        sort(sorted_psum.begin(), sorted_psum.end());
+        // Give a unique id to each psum
+        unordered_map<int, int> rank;
+        for(int i =0; i <= n ; ++i)
+            rank[sorted_psum[i]] = 1+i;
+        BIT.resize(2+n, 0);// WHy 2 because 1 for BIT index starts with 1 index
+                           // 2nd one is because our psum array has a 0 sum also
+                           // Why we added 0 because psum -lower or upper could be 0.
+        int ans =0;
+        for(int i =0; i <= n ; ++i){
+            long  up = psum[i] - lower;
+            long lo = psum[i] - upper;
+            // Now check in sorted psum array
+            int lower_idx  =  lower_bound(sorted_psum.begin(), sorted_psum.end(), lo)-sorted_psum.begin();
+            int higher_idx  = upper_bound(sorted_psum.begin(), sorted_psum.end(), up)-sorted_psum.begin();
+            ans += sum(higher_idx) - sum (lower_idx);
+            update(rank[psum[i]]);
+        }
+        return ans;
+    }
+};
+```
+
+[GFG  Count of substrings in a Binary String that contains more 1s than 0s](https://www.geeksforgeeks.org/count-of-substrings-in-a-binary-string-that-contains-more-1s-than-0s/)
+The page suggest using merge sort but I did using BIT with same time complexity. Try BIT way.
+Will add more problem to this list.
+
+**End Note:**
+- Make sure you can now write bug free update and sum routine , its fairly easy after some practice.
+- Notice what problem is asking and apply the template.
+- If problem involved prefix sum, use rank method and use that array instead.
+- Think where to start iterarting from.
+- lower_bound/upper_bound what to use
+- In general, it problem is asking for some kind of count in array ranges, think if BIT can be applied in some way.
+
